Holset VGT Actuator Installation Kits & Components

To achieve a high-class result, Melett recommends using this/these installation kit/kits in all Holset VGT actuator and turbocharger repairs.

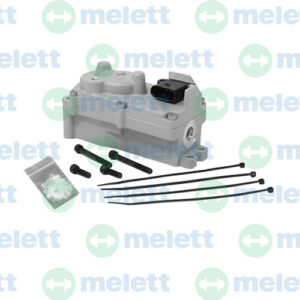

HE400VG/HE500VG Actuator Installation Kit

Typically used on externally cooled actuator models.

Wire Ties x 6
Locating pin x1
Grease Packet x1
Mounting Bolt x4
Actuator Mounting Gasket/Seal x1

1854-132-750

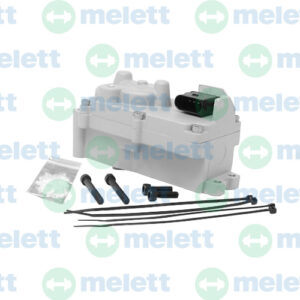

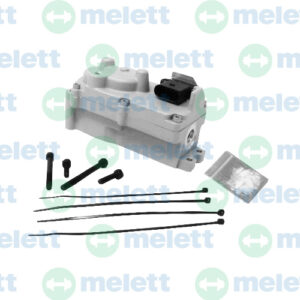

HE300VG Actuator Installation Kit

Typically used on internally cooled actuator models. OE Part reference 4032075H.

Wire Ties x 4
Mounting Bolt x 4
Actuator MountingGasket/Seal x 2
Grease Packet x 1

HE300VG V2 Actuator Connector

4 pin actuator connector

Connector is not supplied with screws.  These can be purchased individually – Part number 1100-025-620.

HE300VG actuator O ring (internal)
